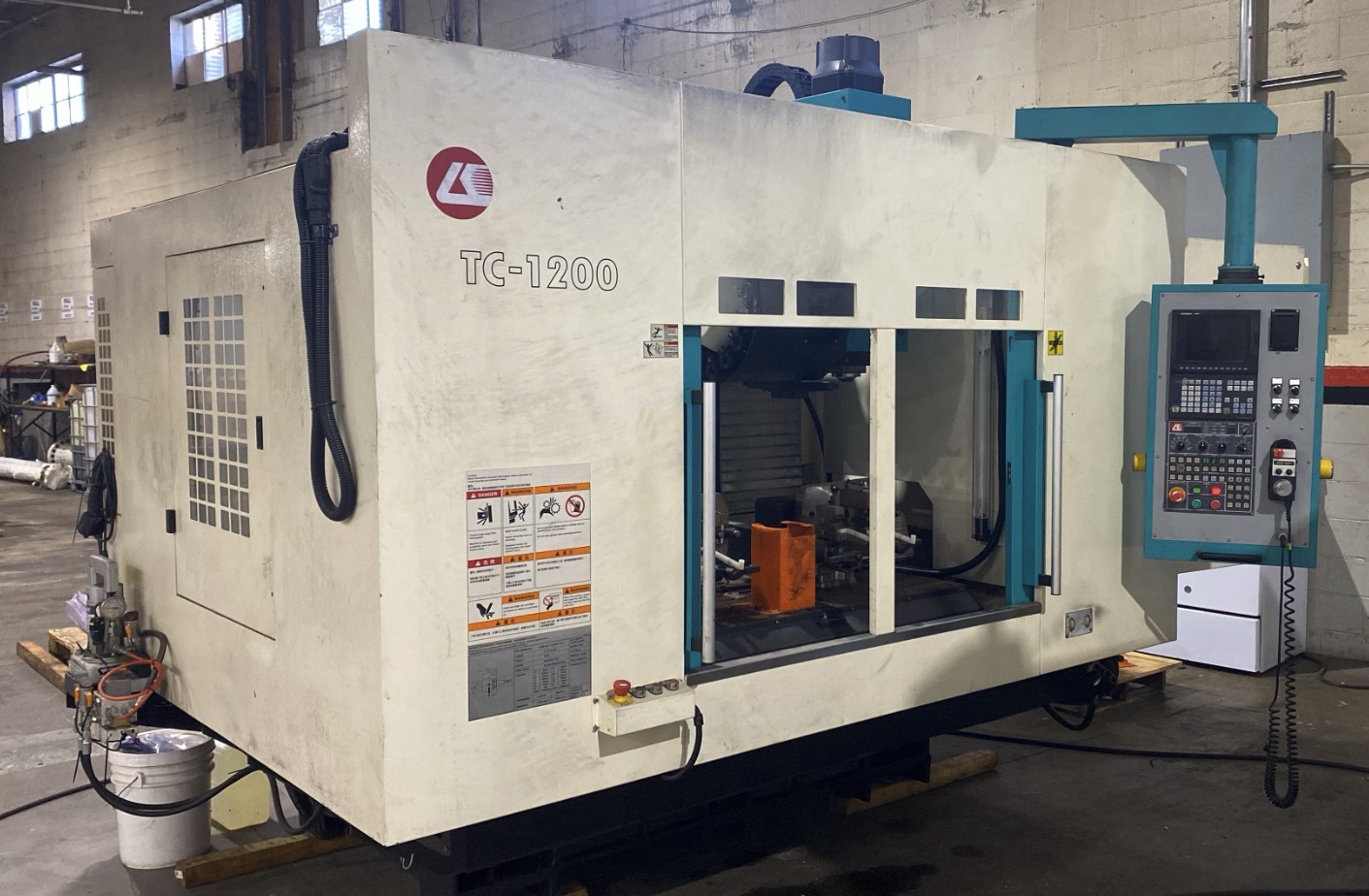

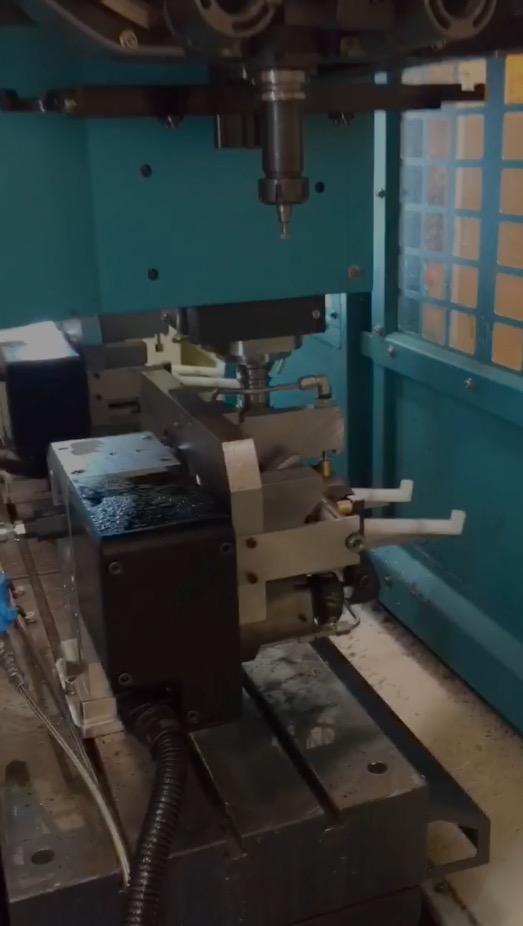

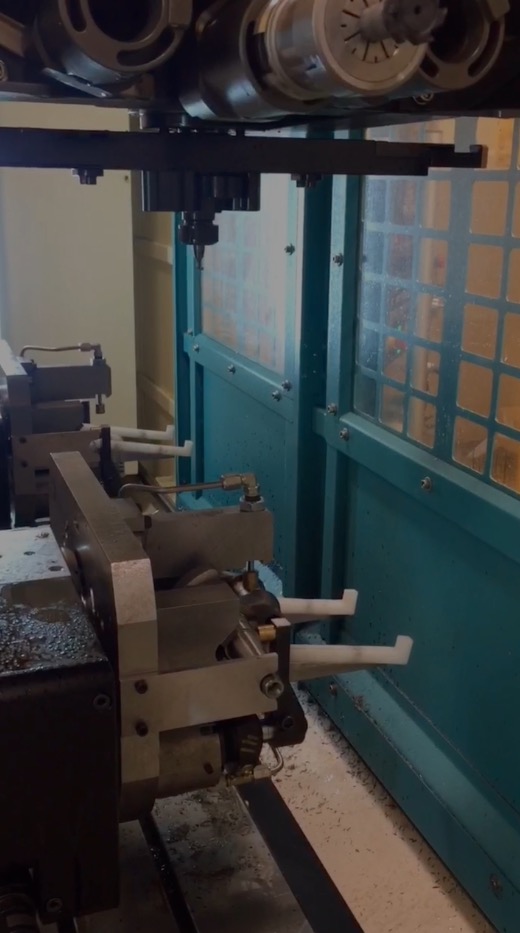

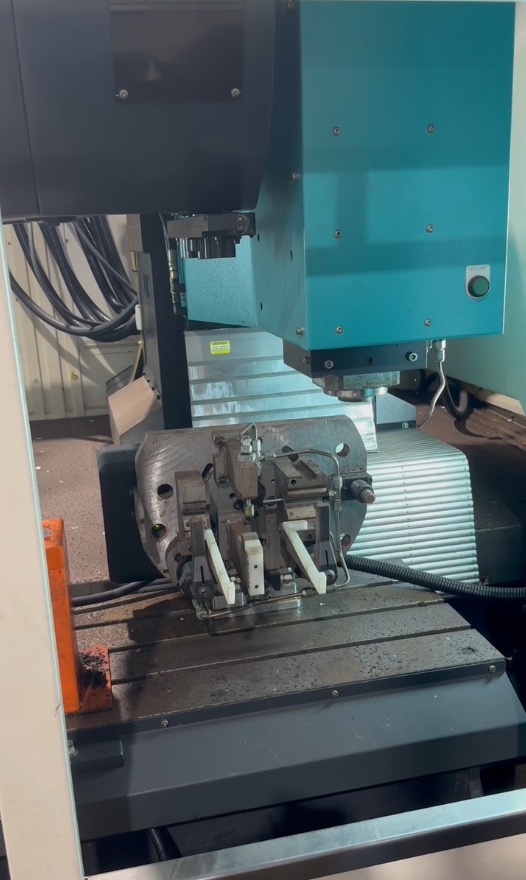

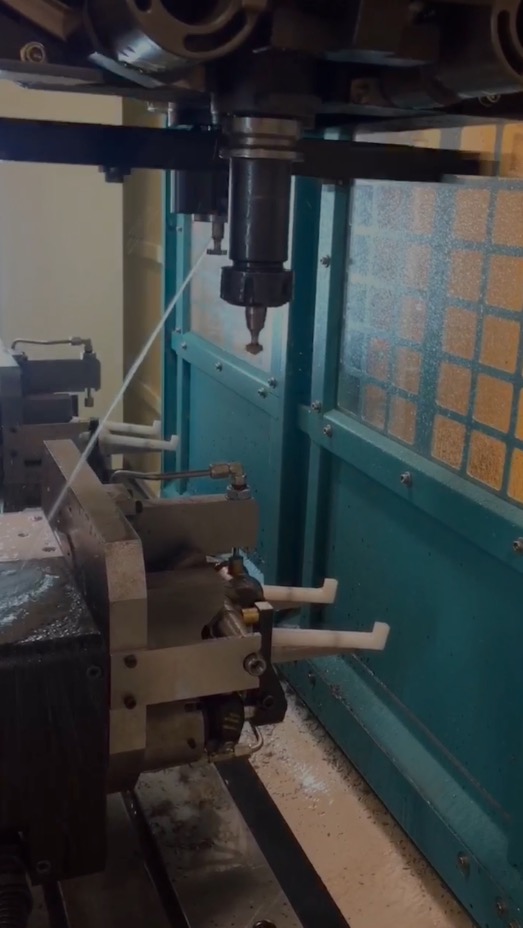

LK TC-1200 Vertical Milling / Drilling / Tapping Center Long Bed Traveling Column Machining Center

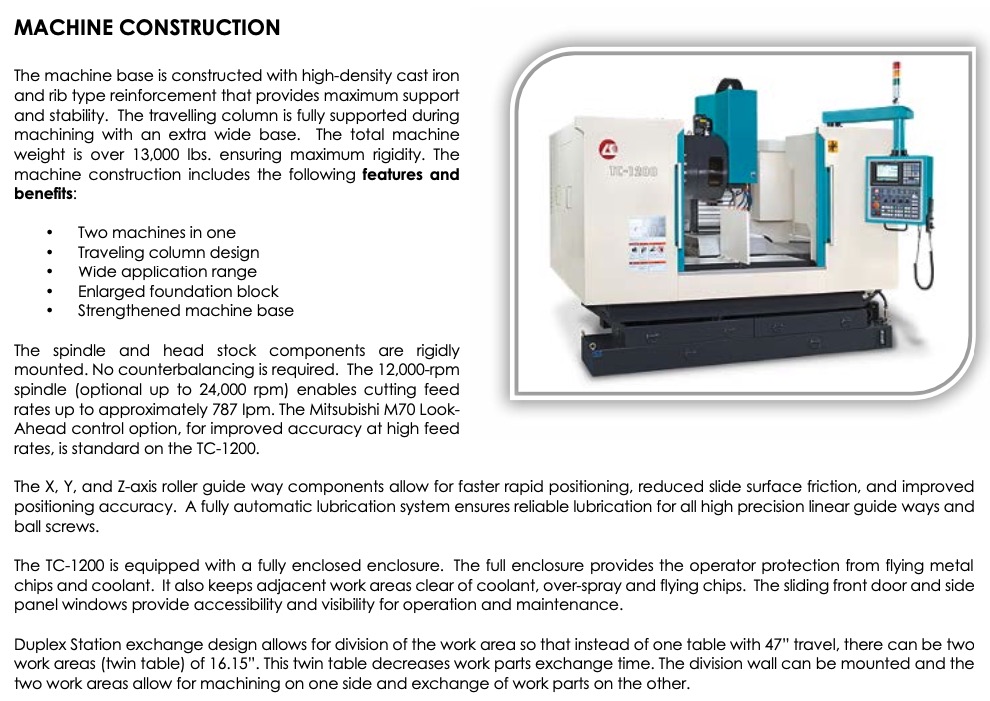

LK TC-1200 VERTICAL MACHINING CENTER

MACHINE SPECIFICATIONS

Travel

X axis travel inch (mm) 16.1 / 47.2 (410/1200)

Y axis travel inch (mm) 16.1 (410)

Z axis travel inch (mm) 16.5 (420)

Distance From Spindle Nose to Table Surface inch (mm) 7.9 – 24 (200-620)

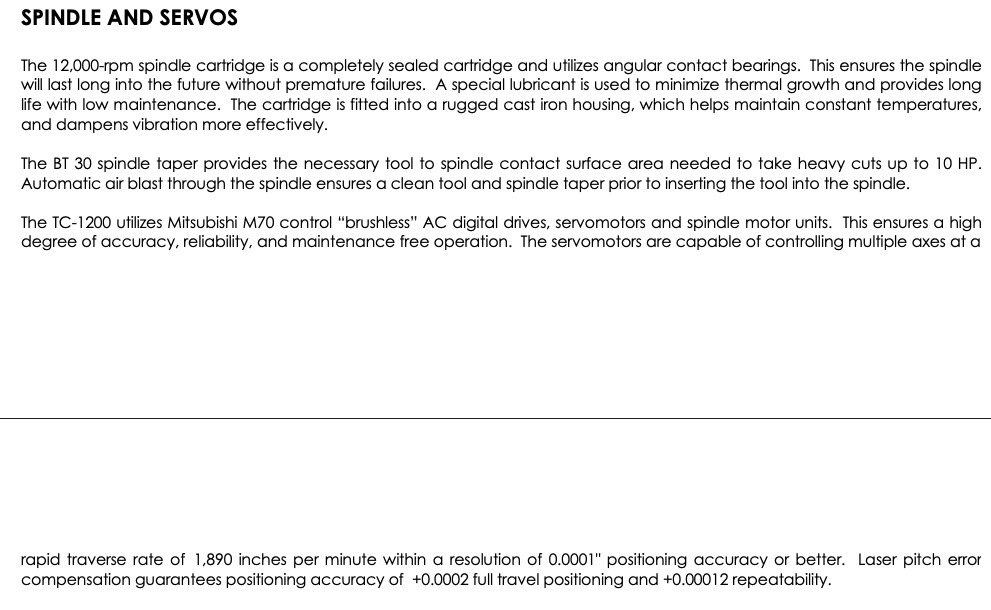

Spindle

Spindle Speed rpm Direct Drive 12,000 RPM

Spindle motor hp (kw) 7.3 / 10 (5.5-7.5)

Spindle nose BT30

Table

Table Dimensions inch (mm) 16.1 x 53.1 (410 x 1350)

T-slot size inch (mm) 0.55 x 0.12 x 3.9 (14 x 3 x 100)

Table Load Capacity lbs (kg) 660 / 1320 (300/600)

Rapid Traverse

Rapid Travel (X/Y/Z) in/m (m/min) 1889 (48)

Cutting Feed Rate in/m (mm/min) 393 (10000)

ATC

Tool Change Type: Arm

Tool Capacity set 20+1

Max. tool weight lbs (kg) 6.6 (3)

Max. tool length inch (mm) 7.8 ( 200)

Max. tool diameter inch (mm) 2.9 (75)

Tool Change Time (T-T) sec 1.8 (std.) / 1.2 (opt.)

Tool Change Time (C-C) sec 2.5

Size & Weight

Machine Size (LxWxH) inch (mm) 122.2 x 106.8 x 98.1 (3104 x 2713 x 2493)

Net Weight lbs (kg) 12,386 (5630)

Gross Weight lbs (kg) 13,706 (6230)

STANDARD EQUIPMENT

• Heavy Ribbed Cast Iron Integrated Design

• Spindle tool change air blow

• Work Light 2 sets

• Alarm light

• Flood Coolant System

• Full Enclosure

• Chip Disposal System

• Foundation Leveling Pads

• Leveling Screws

• Automatic Air Blast through the Spindle

• Automatic Central Lubrication System

• Hand Tool Kit

• Spare Parts Kit

• Operation, Programming and Mitsubishi M70 Maintenance Manuals

• 220 + 10% Volt, 3 Phase Power Connection

SERVICE REQUIREMENTS

• Electrical 220 volt AC + 10%, 3 phase, 60 Hz -60 AMP, 20 KVA Line Service.

• Air 100 PSI min., 1/2" air line I.D. min. - Air usage is 11 CFM.
