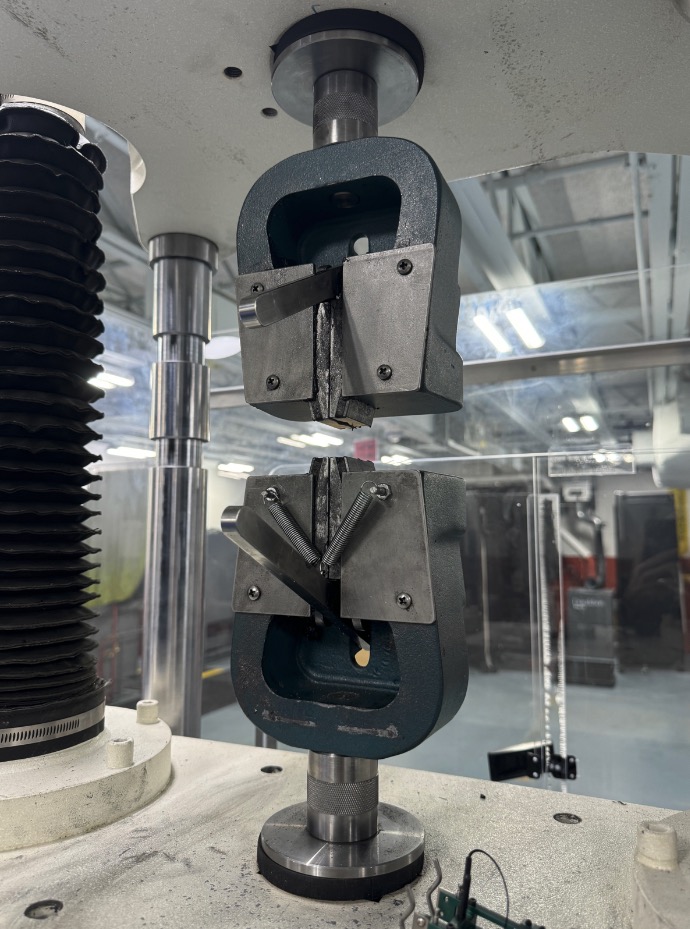

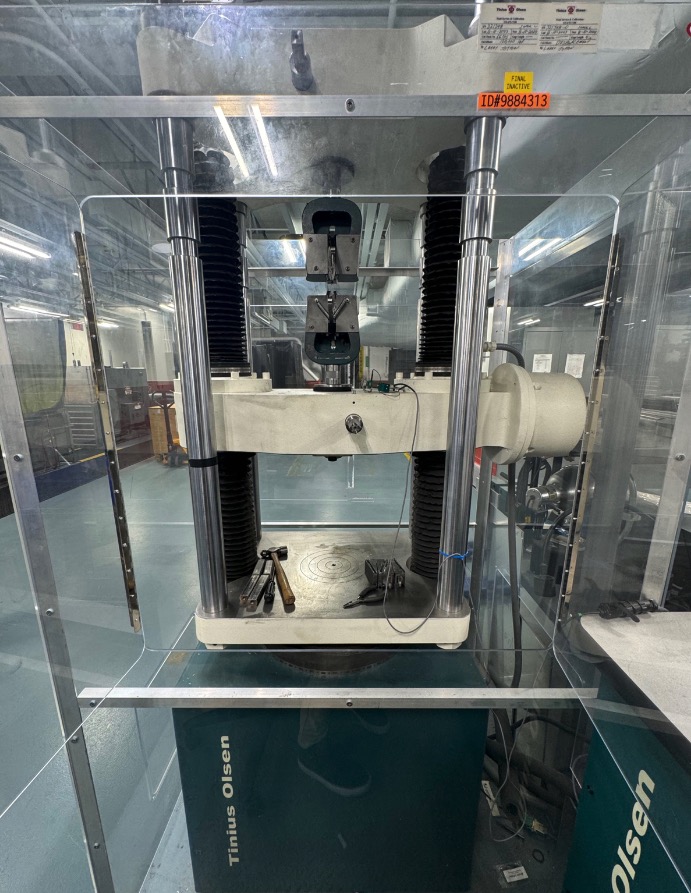

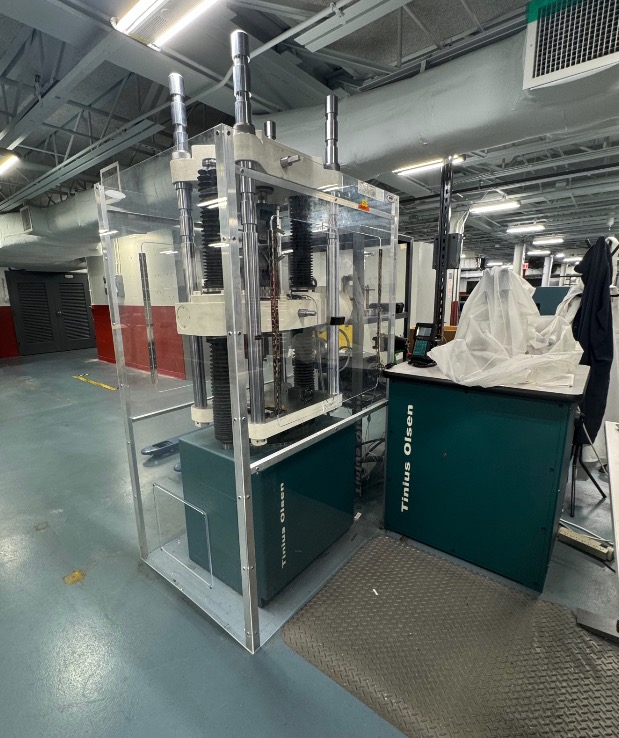

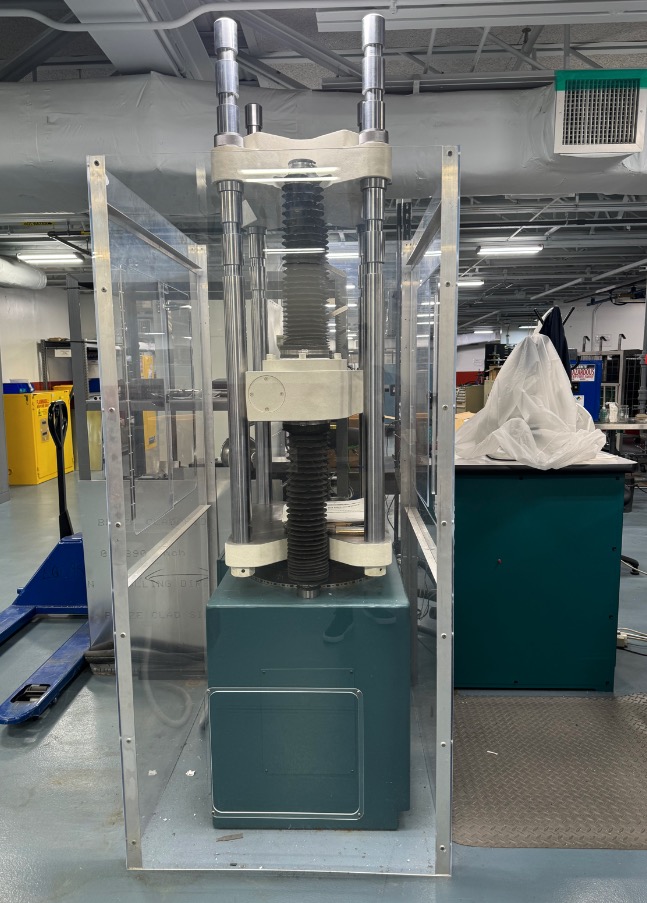

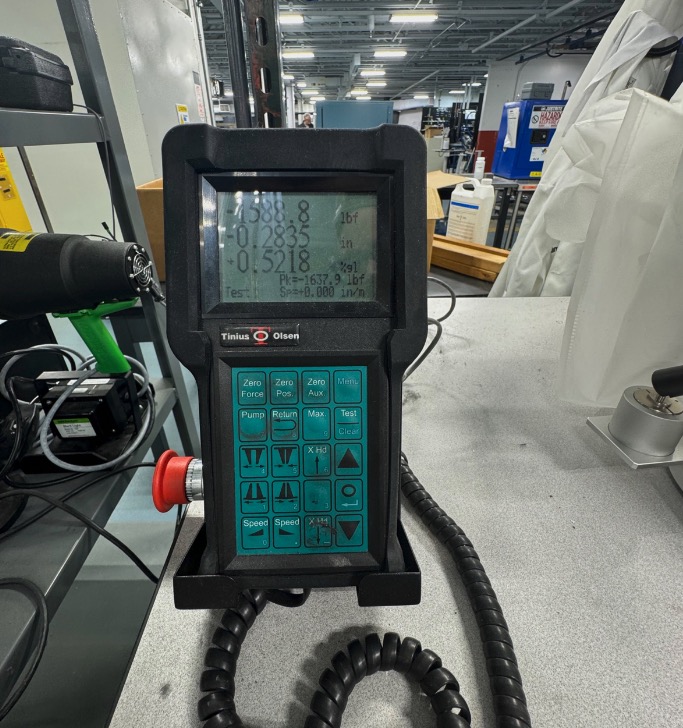

2015 Tinius Olsen Super "L" Hydraulic Universal Testing Machine with Pressure Transducer Weighing, Servovalve Loading System, Model 602 Remote Display & Controller w/ Epsilon 3542 Extensometers

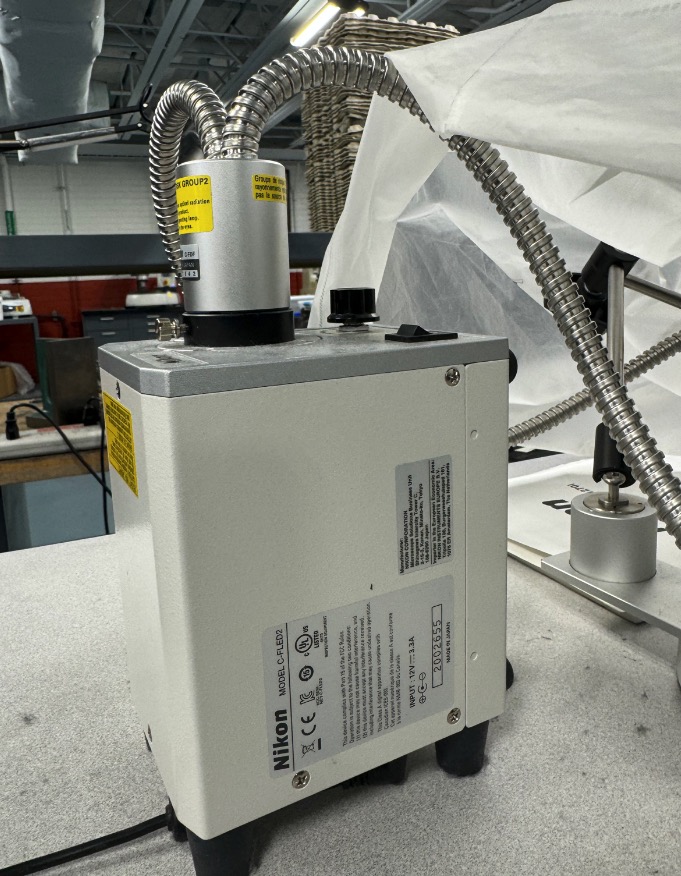

120,000 lbf (600 kN) Capacity Tinius Olsen Model Super L Computer Controlled Hydraulic Tension and Compression Testing Machine with Adjustable Top Crosshead w/ Nikon Stereo Microscope

Tinius Olsen Model Super L

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 54"

Compression Testing Opening (Less Tooling): 46"

Distance Between Columns/Screws: 18"

Testing Stroke: 6"

Table Size (W x D): 20" x 20"

Testing Speed (IPM): 0 – 3

Crosshead Adjusting Speed (IPM): 12

Overall Dimensions:

Weight (lbs.): 4,800

Electrical Requirements (V,Hz,PH): 230/460, 60, 3
